How to Tell if 18650 Battery Is Protected: Visual Guide

Quick Reference Checklist

Here’s your identification checklist:

✓ Check the label for “protected” marking
✓ Measure length (over 67mm = likely protected)
✓ Compare weight (protected = 2-4g heavier)
✓ Inspect terminals for protection circuit
✓ Feel for double wrapper layers
✓ Look for metal connecting tab
✓ Verify with manufacturer specs

Master these checks and you’ll always know how to tell if 18650 battery is protected.

Stay safe out there.

So you’ve got an 18650 battery in your hand and you’re wondering: “Is this thing protected or not?”

Smart question.

Because knowing how to tell if 18650 battery is protected can literally be the difference between a safe battery and one that could damage your device (or worse).

Here’s the deal:

Protected 18650 batteries have a tiny circuit board that acts like a bodyguard for your battery. It prevents overcharging, over-discharging, and short circuits.

Pretty important stuff.

In this guide, as a professional 18650 battery pack manufacturer, I’ll show you exactly how to identify a protected 18650 battery using simple visual checks and measurements that anyone can do.

Let’s dive in.

how to tell if 18650 battery is protected

Why Battery Protection Actually Matters

Before we get into the identification methods, let me explain why this matters.

Unprotected 18650 batteries are like driving without a seatbelt. Sure, you might be fine. But when something goes wrong?

Not good.

Protected batteries have a PCB (Protection Circuit Board) that monitors:

  • Voltage levels
  • Current flow
  • Temperature

Think of it as a safety net that kicks in when things get sketchy.

I learned this the hard way when I first started using 18650s in my flashlights. Grabbed what I thought was a protected cell, turns out it wasn’t, and nearly fried my favorite EDC light.

Never again.

How to Tell if 18650 Battery Is Protected

The Quick Visual Check Method

The fastest way to spot a protected 18650?

Look at the battery’s wrapper.

Many manufacturers print “protected” right on the label. Boom. Done.

But here’s the thing:

Not all protected cells are labeled clearly. Some manufacturers use codes or don’t label them at all.

So you need backup methods.

The Length Test (Works Every Time)

This is my favorite method because it’s foolproof.

Standard unprotected 18650 batteries measure exactly 65mm in length.

Protected batteries? They’re longer.

Usually around 68-70mm.

Why the extra length?

That protection circuit board needs to go somewhere. Manufacturers typically add it to one end of the battery (usually the negative terminal), which adds 3-5mm to the overall length.

Pro tip: Get yourself a cheap digital caliper. Best $10 you’ll spend for battery safety.

Here’s what to measure:

  • Unprotected: 65mm (sometimes 64.5-65.5mm)
  • Protected: 68-70mm (sometimes up to 71mm)

If your battery measures over 67mm, it’s almost certainly protected.

Weight Comparison

Protected batteries are slightly heavier than unprotected ones.

The difference?

Usually 2-4 grams.

Not huge, but noticeable if you’re comparing two batteries side by side.

A typical unprotected 18650 weighs around 45-48 grams. Protected versions clock in at 47-52 grams.

Visual Terminal Inspection

This method requires looking closely at the battery terminals.

Protected batteries often have:

  • A small metal button or disc at the positive end
  • Visible circuit board under the wrapper
  • Different terminal design than standard cells

Sometimes you can actually see the protection circuit through the wrapper if you look carefully.

The positive terminal on protected cells might look slightly different – maybe a bit taller or with a different shape.

The Wrapper Double-Check

Here’s something most people miss:

Protected batteries often have TWO layers of wrapping.

The first layer is the original battery wrapper. The second layer covers the protection circuit and connecting tabs.

You can sometimes feel this double layer at the ends of the battery where it’s slightly thicker.

Look for the Metal Tab

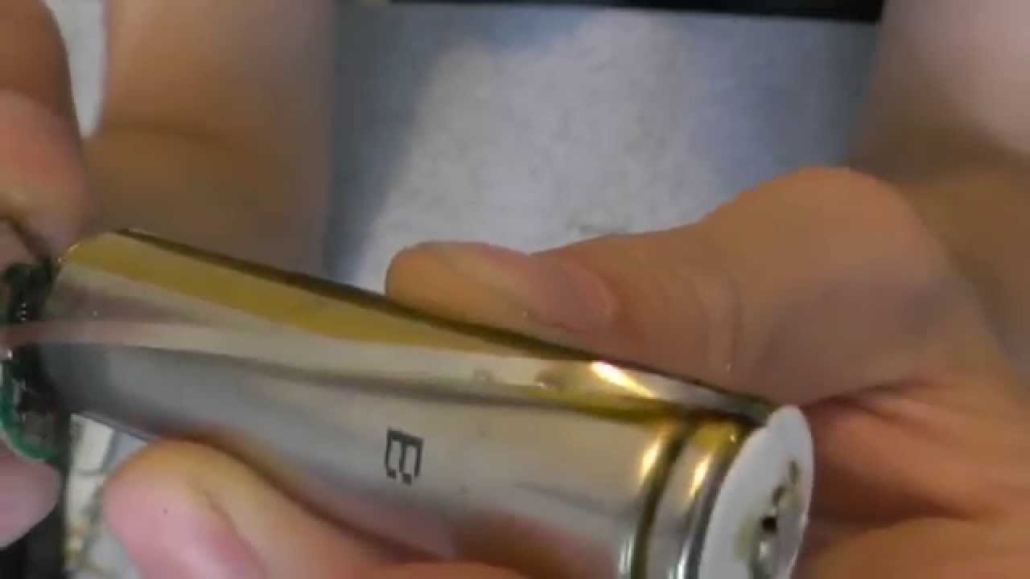

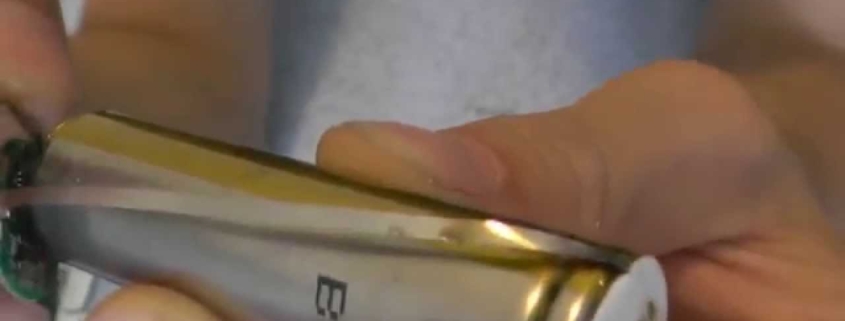

Many protected 18650s have a thin metal tab running from the positive terminal down the side of the battery to the protection circuit at the negative end.

You might see:

  • A slight ridge under the wrapper
  • A visible line running down the battery
  • Uneven wrapper texture where the tab sits

This tab connects the protection circuit to monitor the battery’s voltage.

Check the Specifications

When in doubt, look up your battery’s specs.

Most reputable manufacturers list whether a battery is protected in the product details.

Search for your battery model number plus “datasheet” or “specifications.”

If you bought from a quality vendor, they should clearly state protection status.

Testing Methods (Use With Caution)

I don’t recommend these for beginners, but here are some electrical tests:

Voltage Test: Protected batteries cut off around 2.5V when discharging. If you can discharge below this safely, it’s likely unprotected.

Load Test: Protected batteries have current limits. They’ll cut off if you try to draw too much current.

But honestly?

Stick with the visual and measurement methods. They’re safer and just as reliable.

Common Protected Battery Brands

Some manufacturers are known for clearly marking their protected cells:

  • Panasonic (NCR series often protected)
  • Samsung (some INR models)
  • LG (specific protected versions)
  • Orbtronic (specializes in protected cells)
  • EagleTac (clear protection labeling)

These brands usually make it obvious when a battery is protected.

When Protection Matters Most

Protected batteries are crucial for:

  • Single-cell devices without built-in protection
  • Beginners to 18650 batteries
  • Devices that might over-discharge
  • Applications where safety is paramount

Some devices (like many vape mods) have built-in protection and actually require unprotected batteries for proper current delivery.

Always check your device requirements.

Size Compatibility Issues

Here’s something that trips people up:

Protected 18650s don’t fit in all devices.

That extra length can be a problem in devices designed for standard 65mm cells.

I’ve seen people force protected cells into tight battery compartments. Don’t do this. You could damage the protection circuit or your device.

Always check:

  • Device battery compartment length
  • Manufacturer recommendations
  • User manual specifications

The Bottom Line on Battery Protection

Identifying protected 18650 batteries isn’t rocket science.

The length measurement is your most reliable indicator. Anything over 67mm is almost certainly protected.

Visual inspection comes second – look for labels, double wrapping, and terminal differences.

When you combine these methods, you’ll nail it every time.

Remember:

Protected batteries trade a bit of capacity and current capability for safety. For most users, that’s a worthwhile trade.

And if you’re ever unsure?

Buy from reputable vendors who clearly label their batteries. Your safety is worth more than saving a few bucks on mystery cells.
